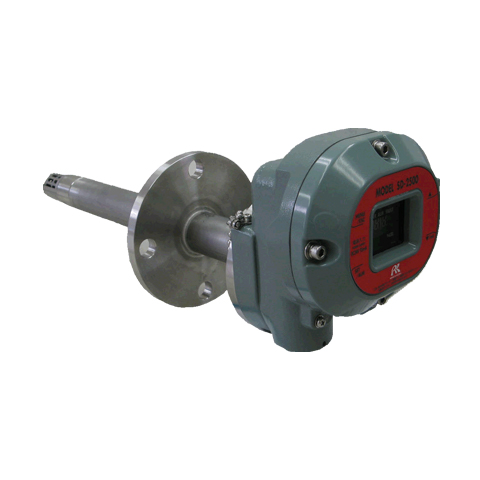

Fixed Gas Detector
SD-2500
Features
・High boiling point solvent can be detected.
・Operating in high temp. 0 to 160℃.
・Concentration display part is integrated to the main body.
・Simple operation only to touch of control key for
adjustment.L-ion_battery_LP.jpg)
Sampling method |
Diffusion type/Single type |
Principle of detection |
Catalytic Combustion Method |
Detection range |
0 to 100%LEL |
Type of alarm |
Gas alarm / fault alarm |
Explosion protected construction |
Flameproof enclosures |
Explosion-proof class |
IECEx : Ex db IIC T3 Gb |
Approvals |
Japan Ex, ATEX, China Ex, UL |
Power source |
24 VDC±10 % |
Dimensions |
Main body : Approx. 148 (W) x 167 (H) x 458 (D) mm |
Weight |
Approx. 4.6 kg |
Operating temperature range |
Insert part: 0 to 160 ℃ (no sudden changes) |
| Catalog | |
| Manual | |
| Specification | |
| Dimensions | |
| Approvals |
