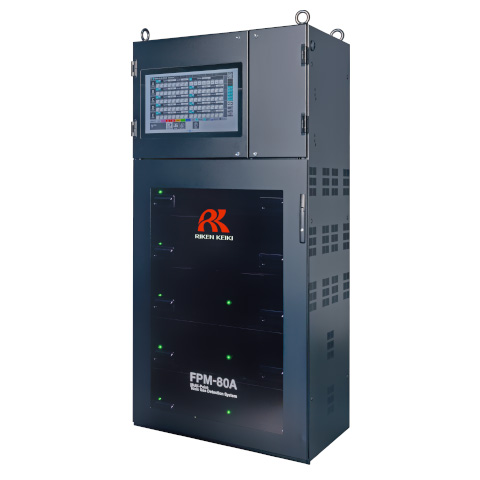

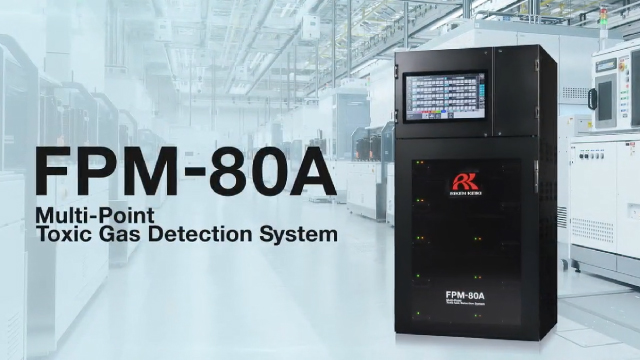

Detection Tape Multi-Point Toxic Gas Detection System
FPM-80A
Features
・Powerful pumps makes gas detection up to
120m (400 ft) distance only within 1 minute.
・Hot swap for power-supply units, pumps, and PCs to make
maximum capacity and minimum downtime at every Fab.
・Easy-to-read and easy-to-operate touch panel.
・Long life & cassette tape type provides
significant reduction in maintenance frequency.
・180 days tape is the longest lifetime.
Sampling method |
Suction type/Double type |
Principle of detection |
Chemical Tape Method |
Detection range |
Depends on target gas. |
Alarm setpoints |
Depends on target gas. |
Type of alarm |
Gas alarm / Fault alarm |
Explosion protected construction |
Non-explosion protection |
CE marking |
EMC / RoHS / LV |
Power source |
Single-phase grounded 100 to 240 V ± 10 % AC (50/60 Hz) |
Dimensions |
Approx. 800(W)×1700(H)×800(D) mm
(31.5(W)×66.9(H)×31.5 (D) inches) |
Weight |
Approx. 400 kg (881 lbs) |
Operating temperature range |
5 to 35 °C (41 to 95 °F) (no sudden fluctuations) |
Operating humidity range |
30 to 60 %RH (no condensation) |
| Catalog |
|
|
FPM-80A PV |
