Discontinued
Post ProductPortable Combination Gas Detector

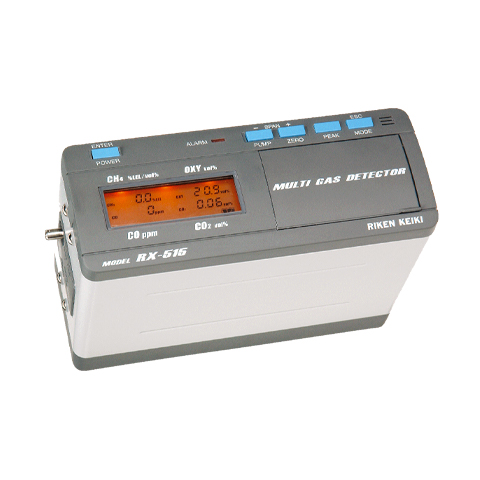

RX-516
Features
・Gas combinations include: HC/O2/H2S
Model list
RX-516 (HC 100%LEL/100vol%, O2 25vol%, H2S 100ppm)

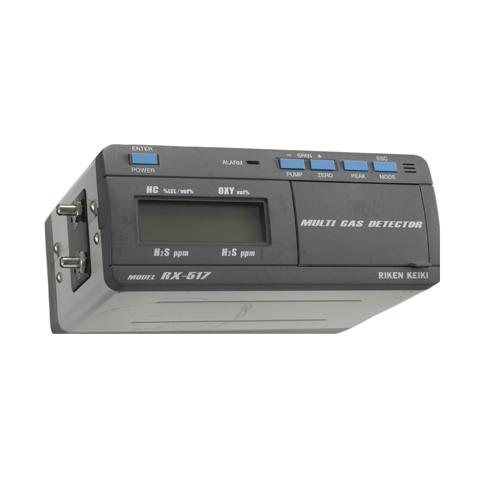

RX-517 (HC 100%LEL/100vol%, O2 25vol%,
H2S 100ppm/1000ppm)
Sampling method |
Suction type |
Detection range |
0 to 100.0%LEL ,2 to 100.0vol%(CH4) |
Explosion protected construction |
Flameproof enclosures + Intrinsic safety |
Approvals |
Japan Ex, ATEX, MED, ABS |
Power source |
Alkaline batteries (Size C) 4pcs |
Continuous operation |
Approx. 30 hours (no alarm or light, at 25℃) |
Dimensions |
Approx. 200(W) x 80(H) x 142(D)mm |
Weight |
Approx. 1.8kg (including batteries) |
Operating temperature range |
-10 to +50℃ (no sudden changes) |
Operating humidity range |
0 to 90%RH (no condensation) |
